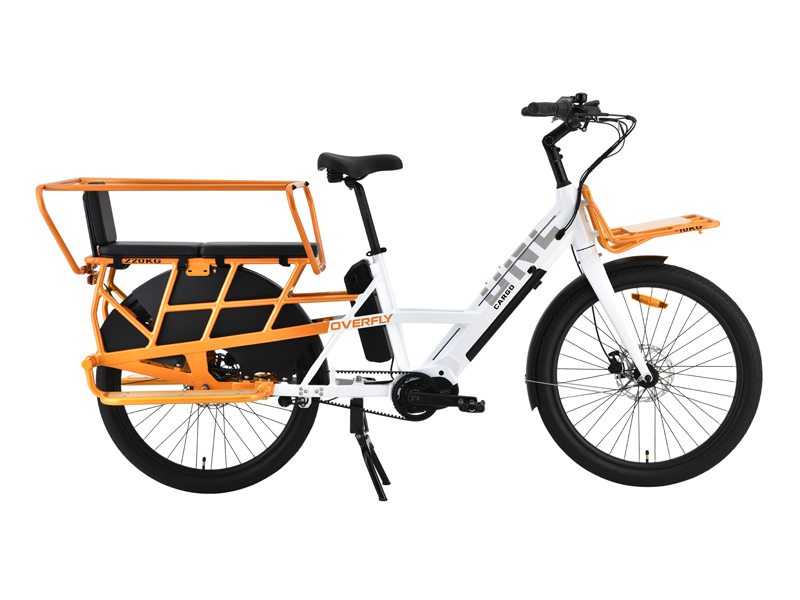

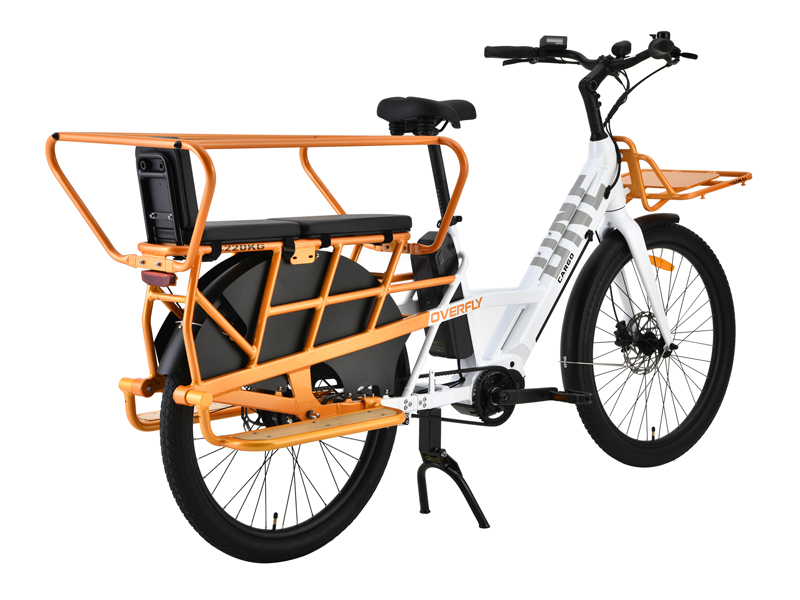

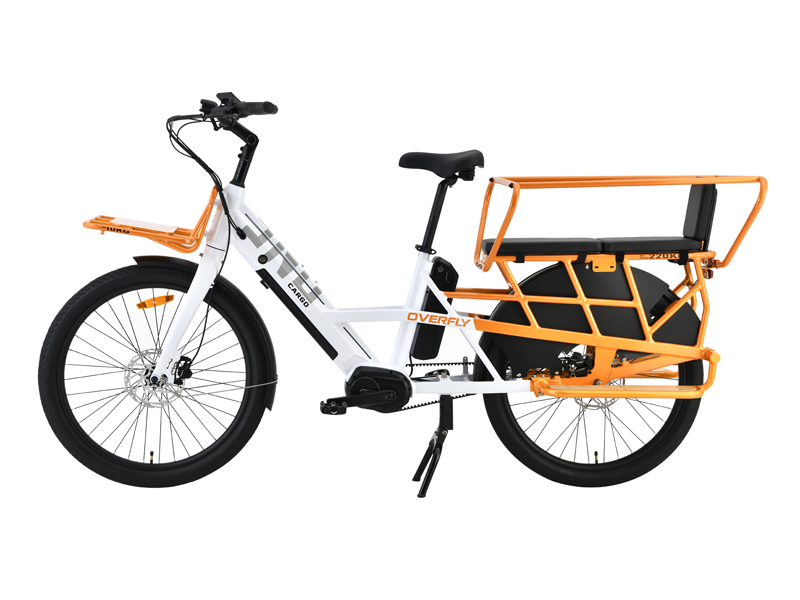

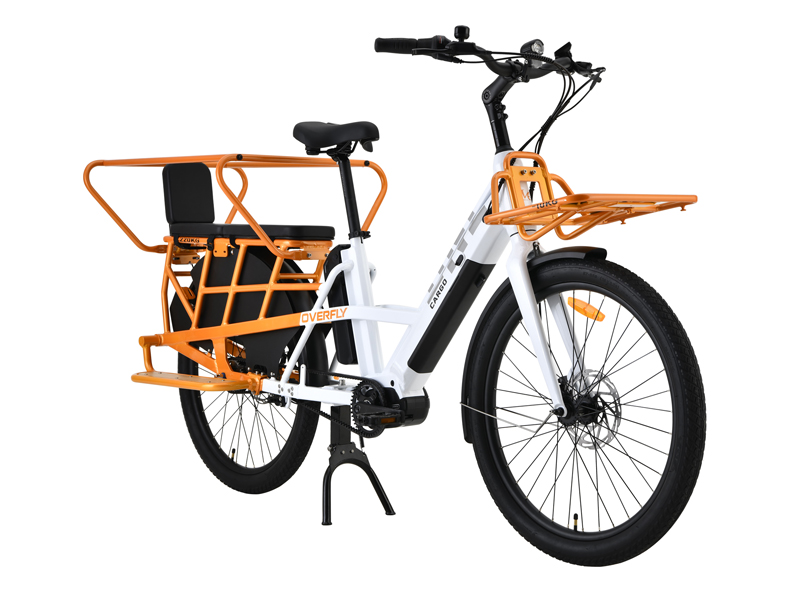

WAGON

SPECIFICATIONS

Frame
6061 Aluminum alloy 26"

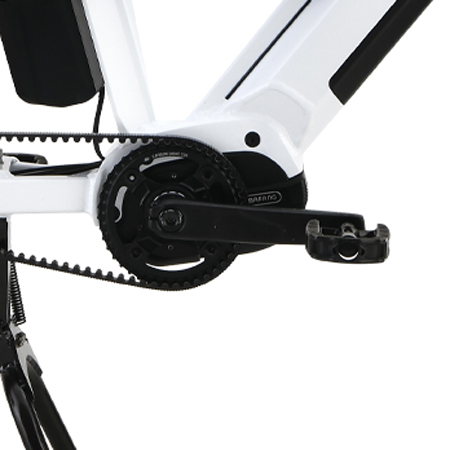

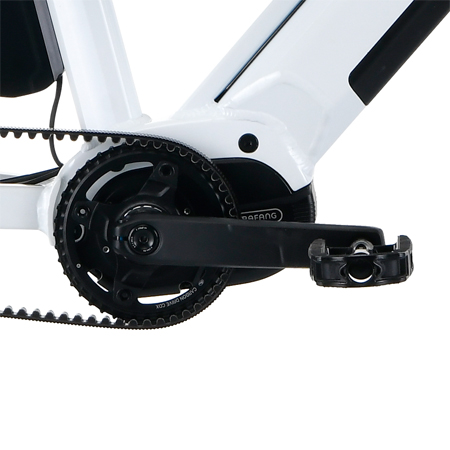

Motor
Ananda 48V 500W Mid-motor
(Bafang M420 250w mid motor)

Fork
Aluminum alloy without suspension

Battery
48V14Ah 672WH+48V10.5Ah 504WH LG
(36V10.5Ah 378WH+36V10.5Ah 378WH) LG

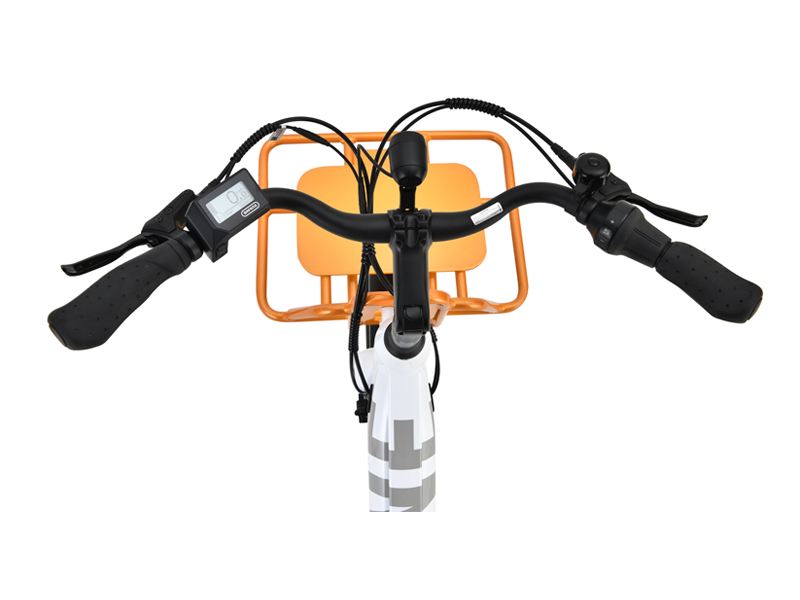

Handlebar
Aluminum alloy

Gear
Shimano Acera 8spd
(Shimano Nexus 5 spd)

Tire CST 26*2.25

Brake
Tektro hydraulic disc brake

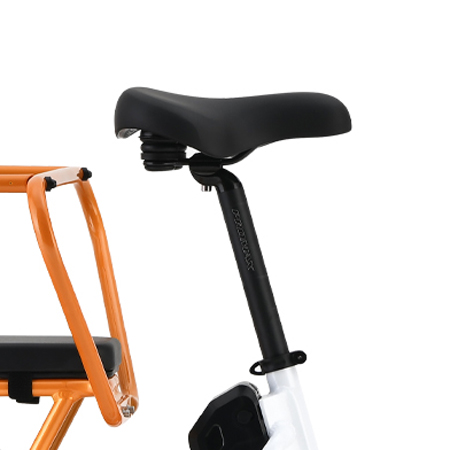

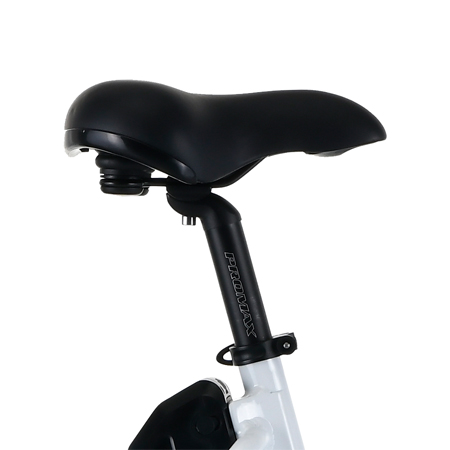

Saddle City series

Display
LCD

Seat post
Aluminum alloy without suspension

Throttle
Optional

Chain
KMC rust resistance
(Gates CDX Carbon belt)

Pedal
Plastic pedal

Driving distance
90-120KM

Max speed
EU 25KM/H     US 32KM/H

Packing dimension
1690*260*890mm

Container QTY
20GP 66PCS / 40HQ 187PCS
